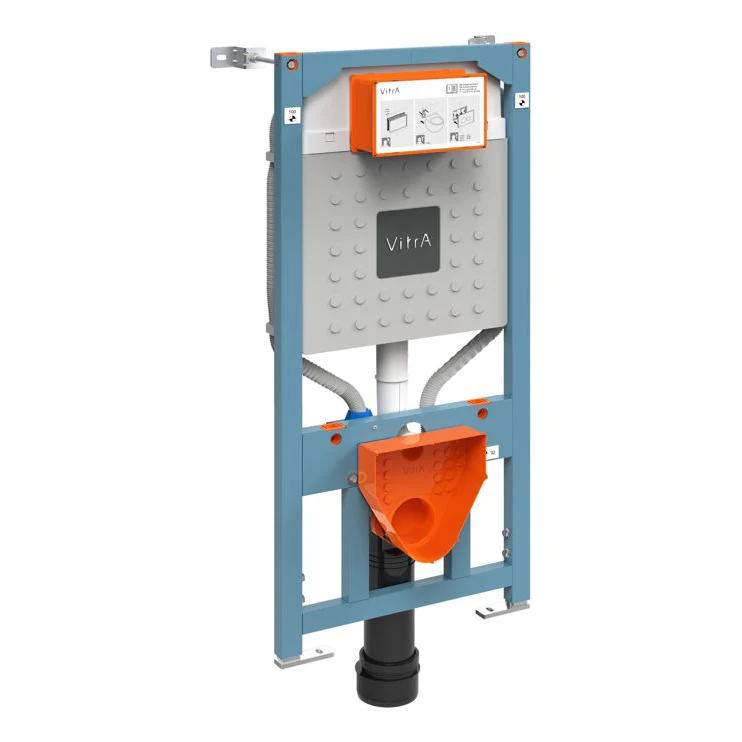

VitrA V-Fix Prime WH WC Frame & 12cm 3/6L Cistern – Floor/Wall Fix + Electric & Water Connection
This full-height wall-hung WC frame from VitrA’s V-Fix Prime range is designed for robust installations in drywall or stud wall environments. The integrated 12cm cistern delivers a standard dual flush (3L / 6L) for water efficiency, while the electric and water connections enable compatibility with VitrA’s smart flush plates and automated systems. Floor and wall fixation ensures long-term stability and load-bearing performance.
Key Features:
- Product Code: 762-5805-01
- SKU: VTWP0053
- Frame Height: 1120mm
- Frame Width: 555mm
- Frame Depth: 120mm
- Cistern Thickness: 12cm
- Flush Volume: Dual flush 3L / 6L
- Mounting Type: Pre-wall (drywall or stud wall)
- Fixation: Floor and wall
- Electric Connection: Yes (flush plate compatible)
- Water Connection: Rear or top inlet
- Weight Capacity: Up to 400kg
- Maintenance: Accessible via flush plate
- Material: Plastic cistern body with metal frame
- Designer: VitrA Design Team
- Guarantee: 10 Years

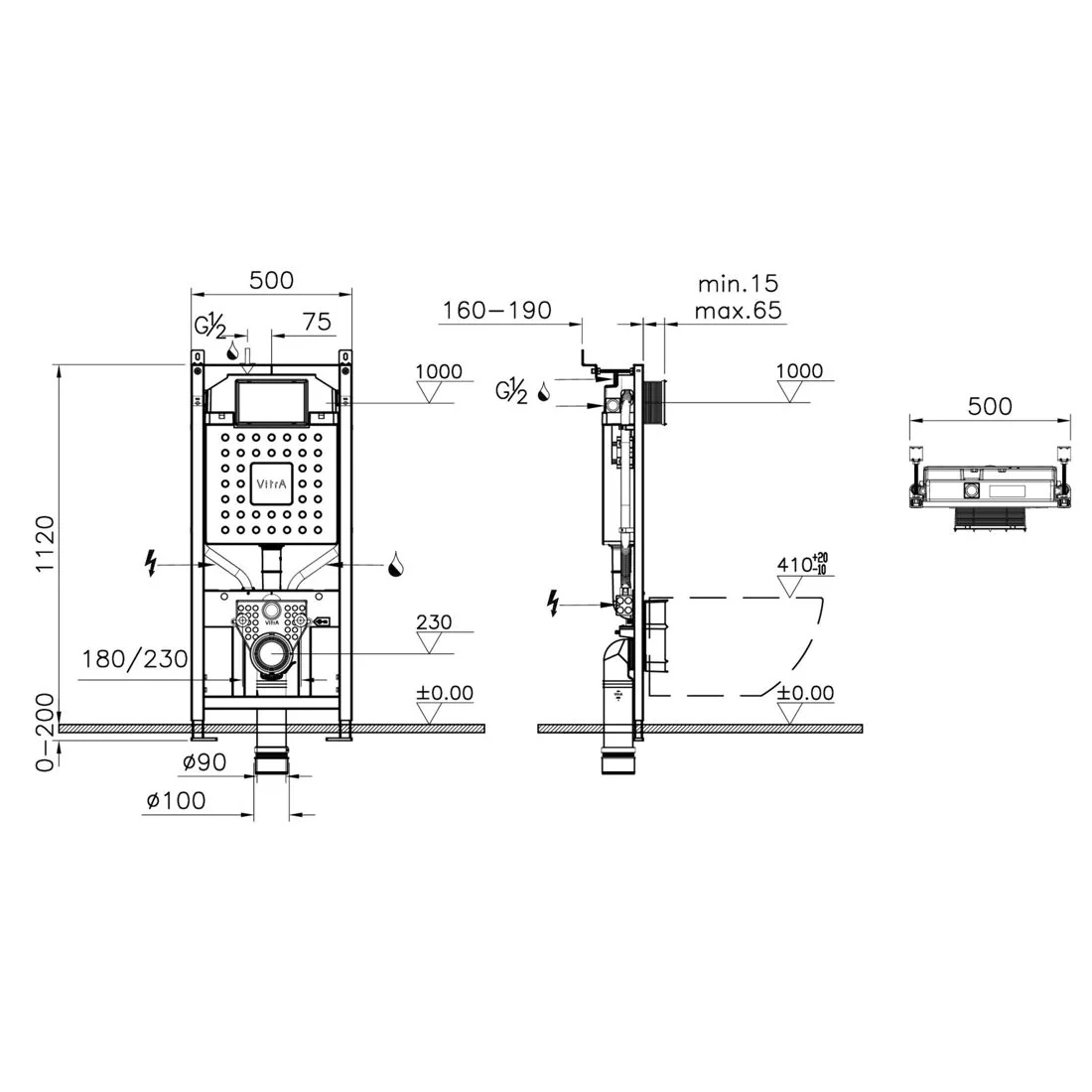

Installation Notes: Compatible with VitrA Prime and smart flush plates. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
